Last Anvil Innovations

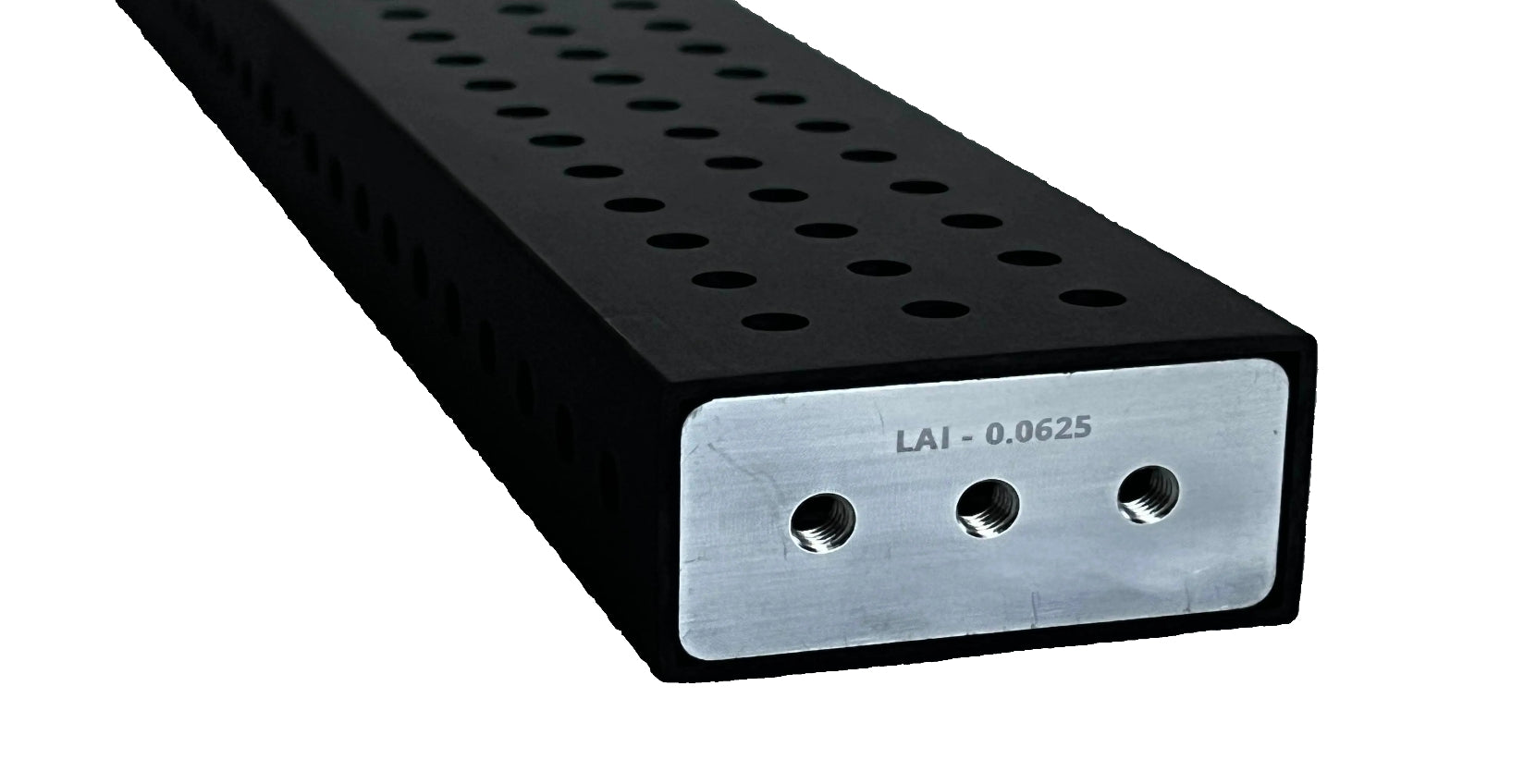

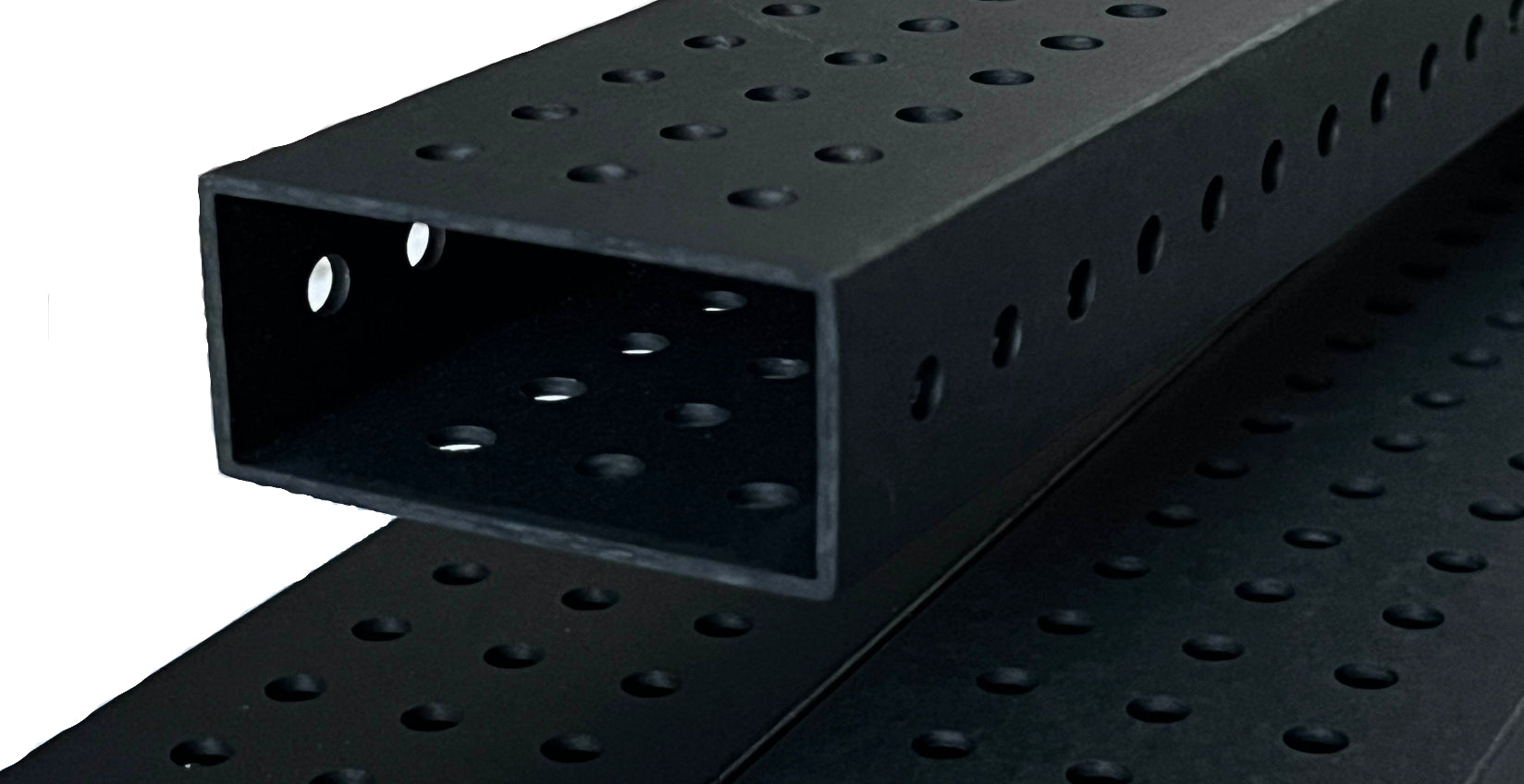

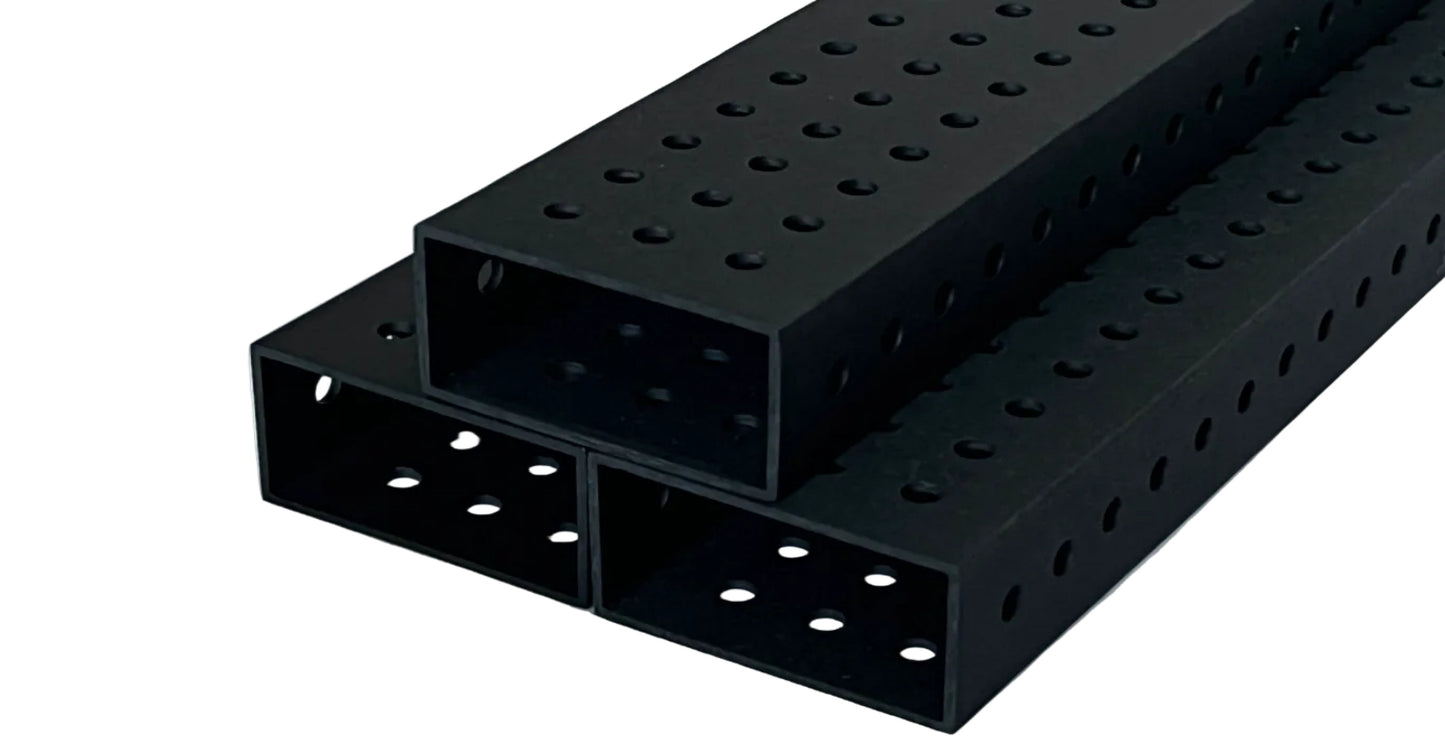

Patterned Tube

Patterned Tube

Product Number:

SKU:240112

Regular price $11.50 USD
Regular price $22.99 USD Sale price $11.50 USD
Sale Sold out
Shipping calculated at checkout.

PLEASE READ BEFORE PURCHASE (9/4):

To make way for new inventory, we are pleased to announce a 50% off sale on all remaining patterned tubes!

Be aware that these are from our non-deburred batch. They will arrive "as is." This means many of them will need to be deburred. Additionally, a small number of them have misaligned holes at the end. To see pictures, please visit Chief Delphi.

Description

Patterned Tubes provide users with the ability to smoothly mount diverse subsystems and easily pair them with jigs for the creation of bearing holes.

Features

  • 6061 Aluminum
  • 5” spacing hole pattern on all faces
    • Thru-holes for #10 bolts
  • Two thicknesses - 1/16” and ⅛”
  • Two profiles: 2”x1” and 1”x1”
  • 47” long
  • Smooth subsystem mounting
  • Easy pairing with jigs to make bearing holes
View full details
SKU Product Material Machining Process Finish Weight (lb) Length STEP File Drawing
240112 1 x 1 x 0.0625 Patterned Tube 6061 Aluminum Extrusion/CNC Sandblasted 1.027 47" STEP PDF
240113 1 x 1 x 0.125 Patterned Tube 6061 Aluminum Extrusion/CNC Sandblasted 1.908 47" STEP PDF
240114 2 x 1 x 0.0625 Patterned Tube 6061 Aluminum Extrusion/CNC Sandblasted 1.542 47" STEP PDF
240115 2 x 1 x 0.125 Patterned Tube 6061 Aluminum Extrusion/CNC Sandblasted 2.938 47" STEP PDF
